PyTorch Geometric (PyG) is a library for geometric deep learning, and W&B works with it for visualizing graphs and tracking experiments. This guide shows you how to authenticate to W&B, install the wandb library, visualize PyG graphs with PyVis or Plotly, and log training metrics from your PyG workflows. Use it to track experiments and share graph visualizations in W&B. After you install PyTorch Geometric, follow these steps to get started.

​
Sign up and create an API key

An API key authenticates your machine to W&B. You can generate an API key from your user profile.
For a more streamlined approach, go to User Settings and create an API key. Copy the API key immediately and save it in a secure location such as a password manager.
  1. Click your user profile icon in the upper right corner.
  2. Select User Settings, then scroll to the API Keys section.

​
Install the wandb library and log in

To install the wandb library locally and log in:
  1. Set the WANDB_API_KEY environment variable to your API key. Replace values enclosed in <> with your own:
    export WANDB_API_KEY=<your_api_key>
  2. Install the wandb library and log in.
    pip install wandb

wandb login

​
Visualize the graphs

After you log in, you can begin sending graph visualizations and run data to W&B. You can save details about the input graphs, including number of edges, number of nodes, and more. W&B supports logging Plotly charts and HTML panels, so you can also log any visualizations you create for your graph to W&B. The following sections show two common approaches: PyVis for interactive HTML visualizations and Plotly for chart-based visualizations.

​
Use PyVis

The following snippet shows how to do that with PyVis and HTML.
from pyvis.network import Network
import wandb

with wandb.init(project="graph_vis") as run:
    net = Network(height="750px", width="100%", bgcolor="#222222", font_color="white")

    # Add the edges from the PyG graph to the PyVis network
    for e in tqdm(g.edge_index.T):
        src = e[0].item()
        dst = e[1].item()

        net.add_node(dst)
        net.add_node(src)

        net.add_edge(src, dst, value=0.1)

    # Save the PyVis visualisation to a HTML file
    net.show("graph.html")
    run.log({"eda/graph": wandb.Html("graph.html")})

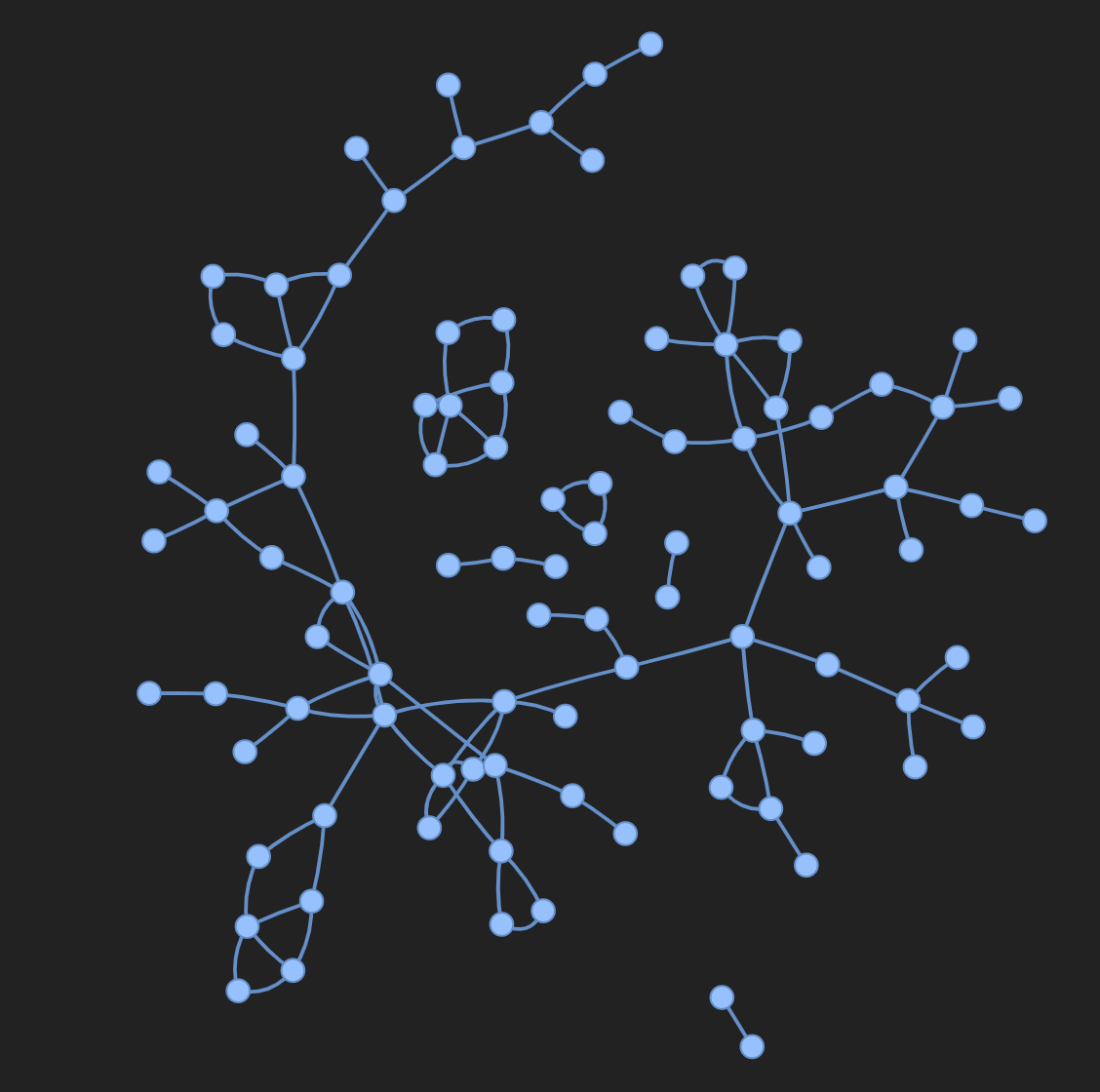

Interactive graph visualization

​
Use Plotly

To use Plotly to create a graph visualization, first convert the PyG graph to a networkx object. Then create Plotly scatter plots for both nodes and edges. Use the following snippet for this task.
def create_vis(graph):
    G = to_networkx(graph)
    pos = nx.spring_layout(G)

    edge_x = []
    edge_y = []
    for edge in G.edges():
        x0, y0 = pos[edge[0]]
        x1, y1 = pos[edge[1]]
        edge_x.append(x0)
        edge_x.append(x1)
        edge_x.append(None)
        edge_y.append(y0)
        edge_y.append(y1)
        edge_y.append(None)

    edge_trace = go.Scatter(
        x=edge_x, y=edge_y,
        line=dict(width=0.5, color='#888'),
        hoverinfo='none',
        mode='lines'
    )

    node_x = []
    node_y = []
    for node in G.nodes():
        x, y = pos[node]
        node_x.append(x)
        node_y.append(y)

    node_trace = go.Scatter(
        x=node_x, y=node_y,
        mode='markers',
        hoverinfo='text',
        line_width=2
    )

    fig = go.Figure(data=[edge_trace, node_trace], layout=go.Layout())

    return fig


with wandb.init(project="visualize_graph") as run:
    run.log({"graph": wandb.Plotly(create_vis(graph))})

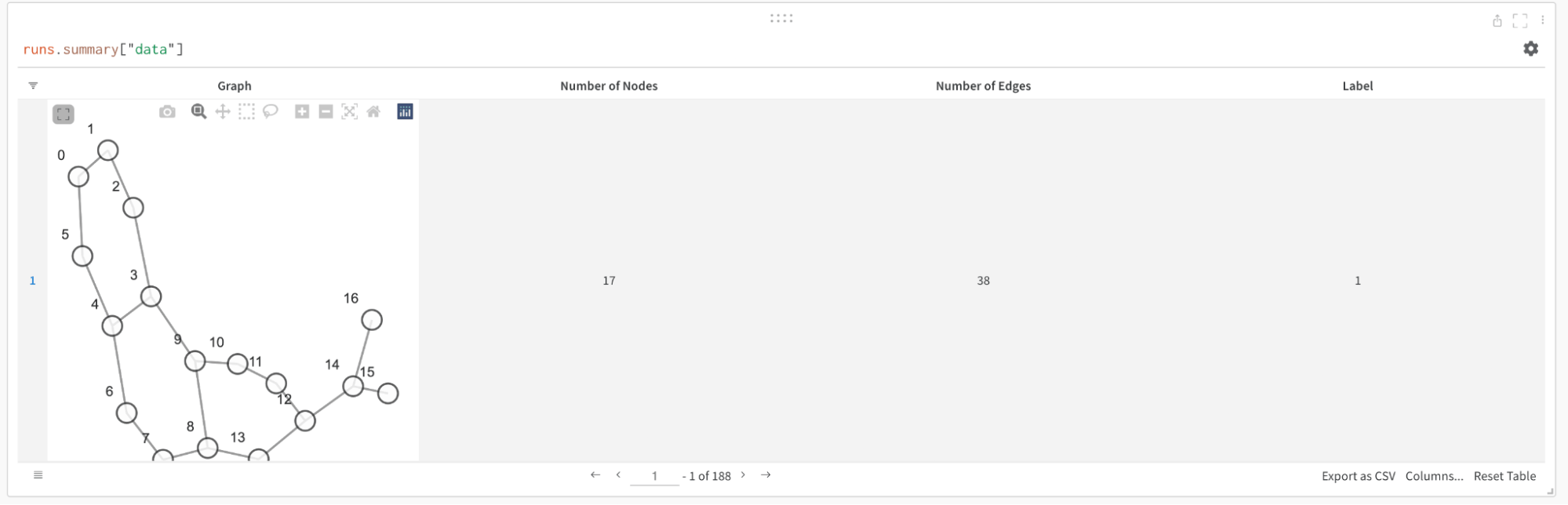

A visualization created using the example function and logged inside a W&B Table.

​
Log metrics

In addition to graph visualizations, you can use W&B to track your experiments and related metrics, such as loss functions, accuracy, and more. Add the following lines to your training loop:
with wandb.init(project="my_project", entity="my_entity") as run:
    run.log({
        'train/loss': training_loss,
        'train/acc': training_acc,
        'val/loss': validation_loss,
        'val/acc': validation_acc
        })

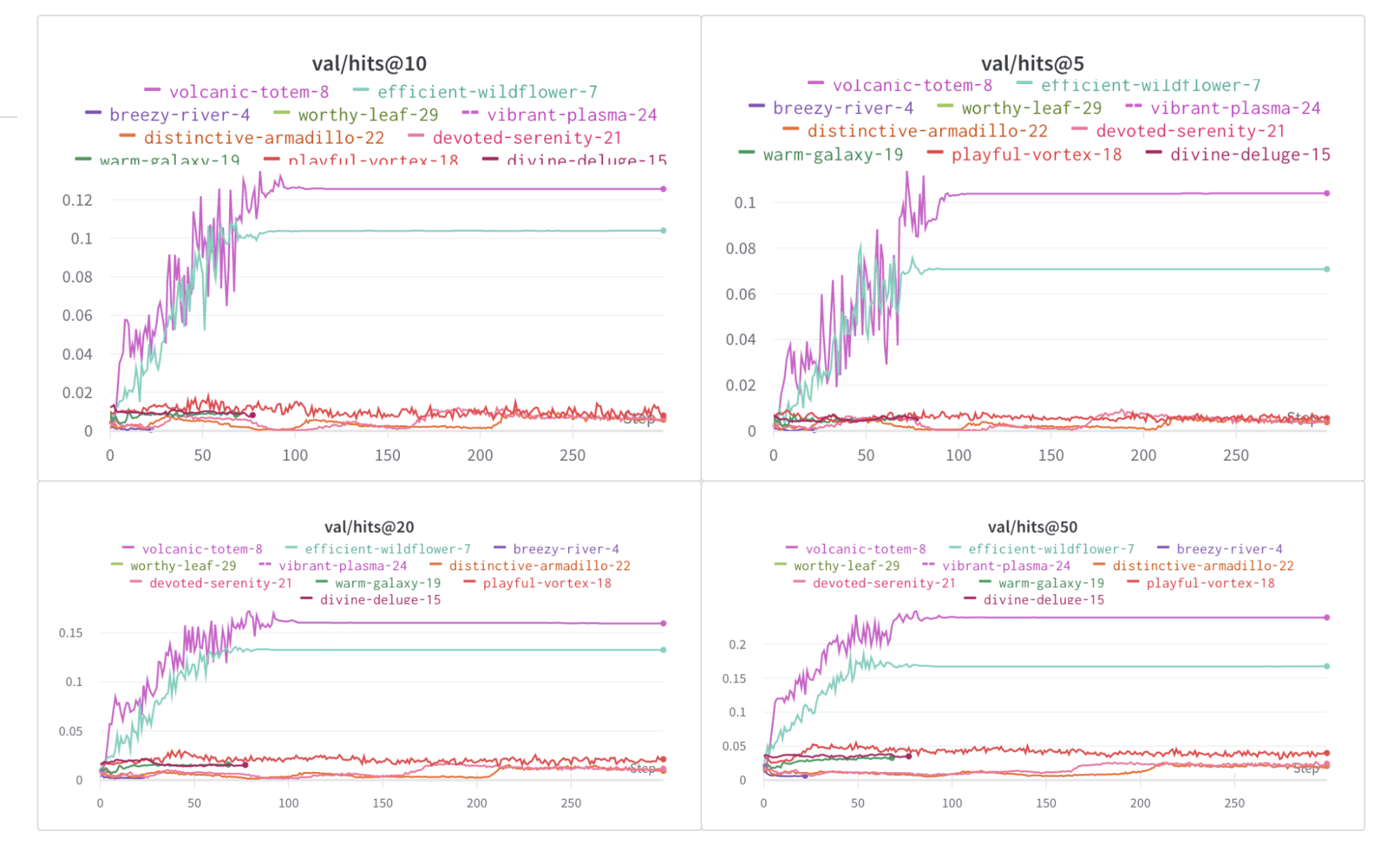

hits@K metrics over epochs
With graph visualizations and training metrics logged to W&B, you can compare runs and share results from your PyG experiments in your W&B workspace.

​
More resources

The following W&B reports show PyG in action:
